PU/PVC/Back Coating

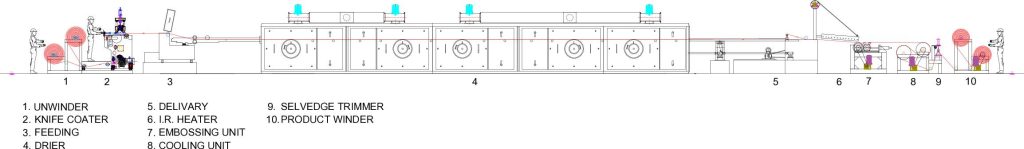

Machine Diagram

The Direct Fabric Coating Machine is a versatile and reliable solution designed to meet the diverse demands of the textile industry. Developed for PU, PVC, and back coating applications, this machine ensures precise and consistent application, enhancing fabric properties such as waterproofing, abrasion resistance, and flame retardancy. Featuring advanced techniques like knife over air, knife over roll, and gravure coating, it is suitable for a wide range of fabric processing needs. Built for efficiency and durability, the machine helps manufacturers achieve high-quality finishes while streamlining their production processes.
| Technical Specification | |
|---|---|
| Web width | 1600mm to 4400mm |
| Coating method | Knife on Roll, Knife on fabric, Gravure coating |
| Heating system | Thermic oil, Steam line, Gas burner & IR |
| Coating Range | up to 1500 GSM |
Uniform Coating | Uniform Heating | Enhanced strength | Consistent finish | Versatile applications | High Precision | Cost-Effective Solution | High-Speed Performance | Easy Maintenance | Energy Efficient | Customizable Settings | Durable Construction | User-Friendly Interface | Low Operational Costs
Market Focus
Agrotech, Buildtech, Geotech

Hometech, Clothtech
Indutech, Meditech

Mobiltech, Protech
Oeko Tech, Packtech
